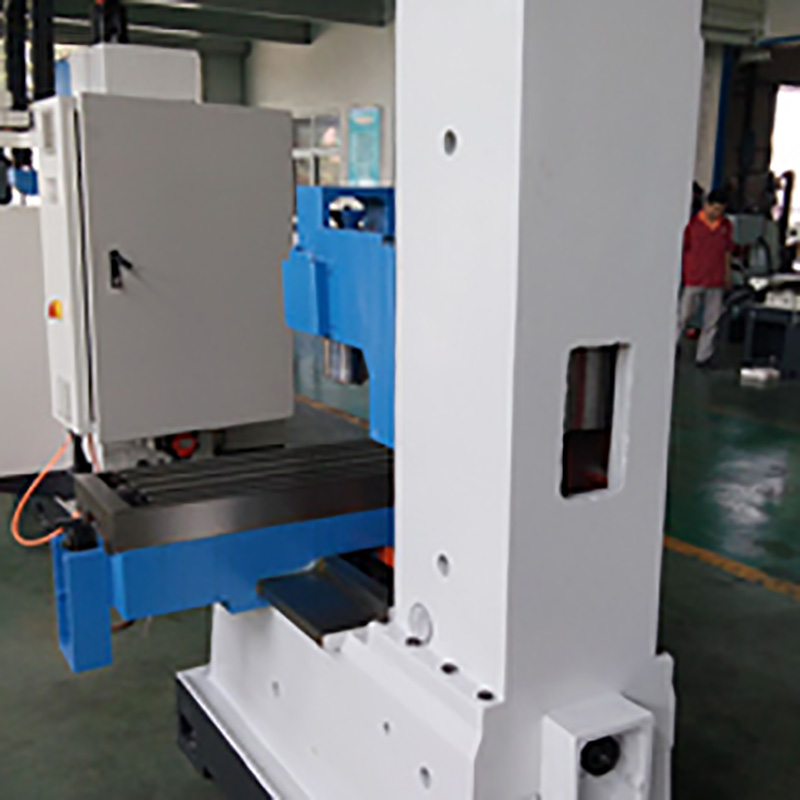

XK7132L Industrial Grade 3 Axis Cnc Milling Machine with 4 Axis Optional

  • XK7132L
  • WMT
  • 8459619000
Quantity:

Product Description

Features:

  • Used for machining box parts, shell parts, disc-shaped parts

  • Dovetail guideway with plastic sticking, high rigidity, high stability and strong support

  • Pneumatically tool clamping

XK7132

XK7136细节

Specification  XK7132L
Worktable size(LxW) 1500x330mm
T-slot (NxWx D) 3/18/85mm
X axis travel 1000mm
Y axis travel 450mm
Z axis travel 500mm
Distance from spindle nose to worktable surface 100-600mm
Distance from spindle center to column 400mm
Rapid feed speed(X/Y/Z) 8/8/6m/min
Spindle taper BT40
Spindle speed range 8000rpm
Main motor power 5.5kw
AC servo motor torque(X/Y/Z) 10/10/15N.m
Over size(LxWxH) 2100x1900x2350mm
NW 2600kgs

Standard accessories:

Spindle BT40, 5.5Kw, s=8000rpm

Worktable size:1500x320mm;

X/Y/Z: 1000X450X500mm,

X/Y/Z hard guideway

Worktable loading 500kgs,

Full cover,16ATC umbrella type
