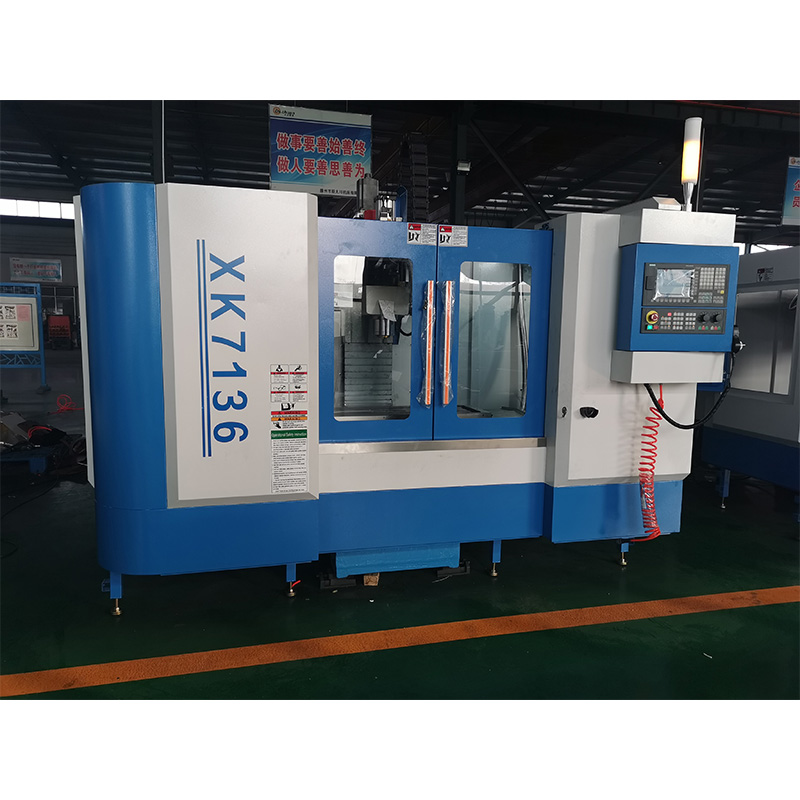

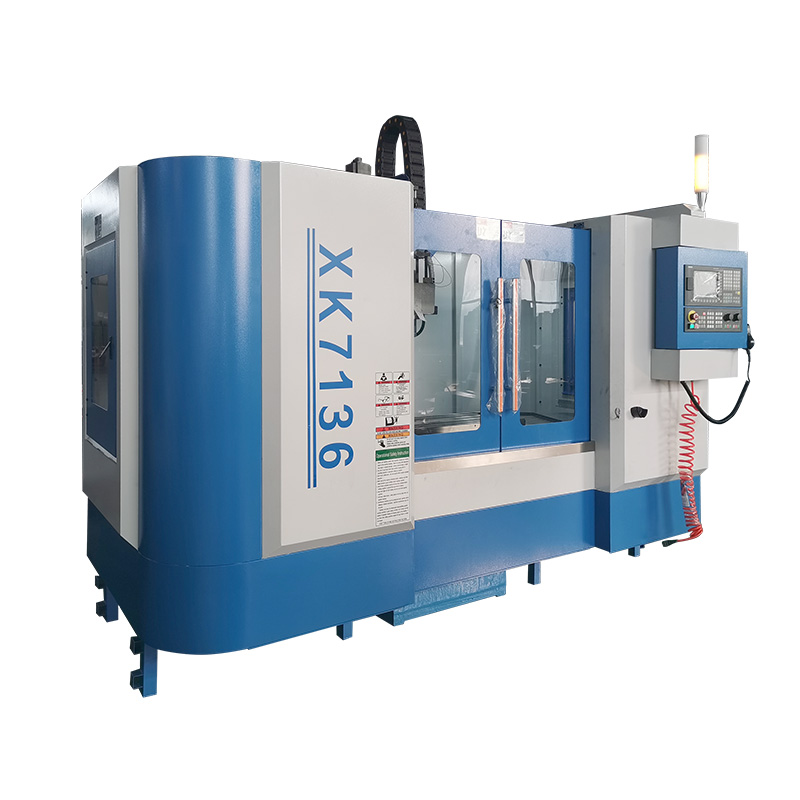

XK7136 2019 HOT SELLING 3 AXIS CNC MILL WITH 12 POSITION ATC

  • XK7136

  • WMT

  • 8459619000

Availability:
Quantity:

Product Description

Features:

  • Used for machining box parts, shell parts, disc-shaped parts

  • Dovetail guideway with plastic sticking, high rigidity, high stability and strong support

  • Pneumatically tool clamping

XK7136主图04 (3)


Specification
XK7136
Worktable size(LxW)
1250x360mm
T-slot (NxWx D)
3/18/80mm
X axis travel
900mm
Y axis travel
350mm
Z axis travel
500mm

Distance from spindle nose to

worktable surface

100-600mm

Distance from spindle center

to column

460mm
Rapid feed speed(X/Y/Z)
10/10/8m/min
Spindle taper
BT40
Spindle speed range
8000rpm
Main motor power
5.5kw
AC servo motor torque(X/Y/Z)
7.7/7.7/7.7N.m
Over size(LxWxH)
2200x1850x2350mm
Net weight
2400kgs

Standard Equipment:

Taiwan Royal/Volis BT40 spindle, spindle speed:60-8000rpm

Full sheet metal cover , 16 pcs umbrella type ATC

casting iron stand

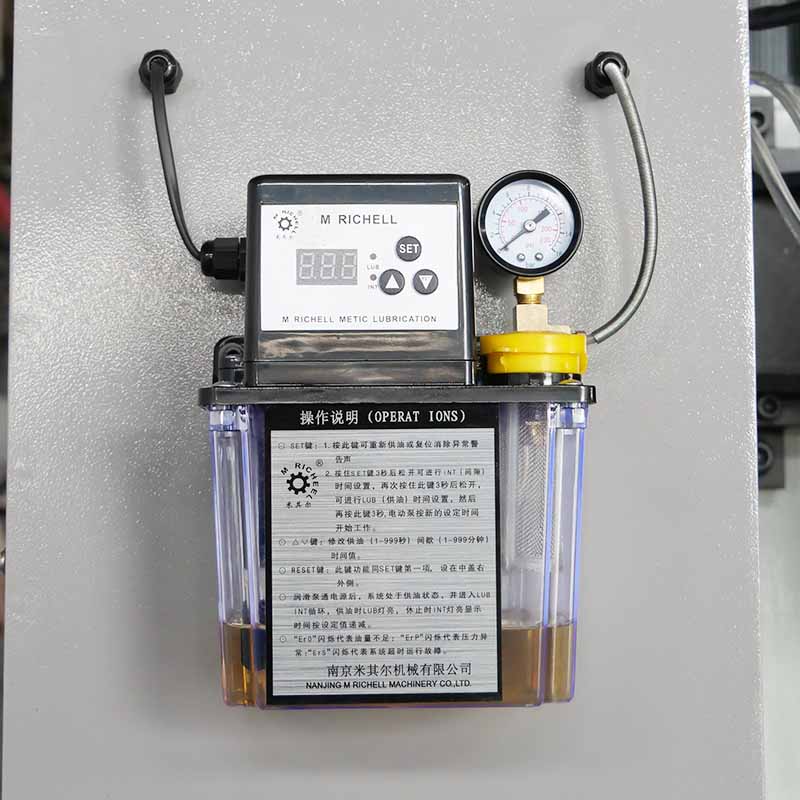

cooling system , work light, automatic lubrication system
pneumatic tool changing
8pcs milling chuck, tool box with tools



Optional Equipment

GSK 980MDC, GSK980MID, GSK218M controller

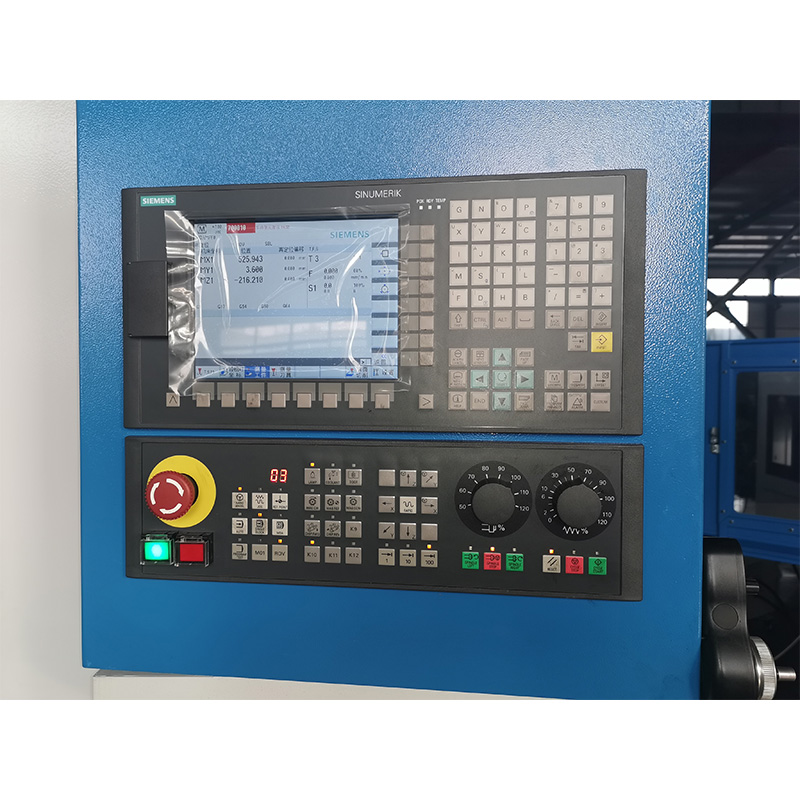

Siemens 808D controller

Siemens 808D Advance controller

 Fanuc Oi MF controller

4th axis NC dividing head or rotary table
