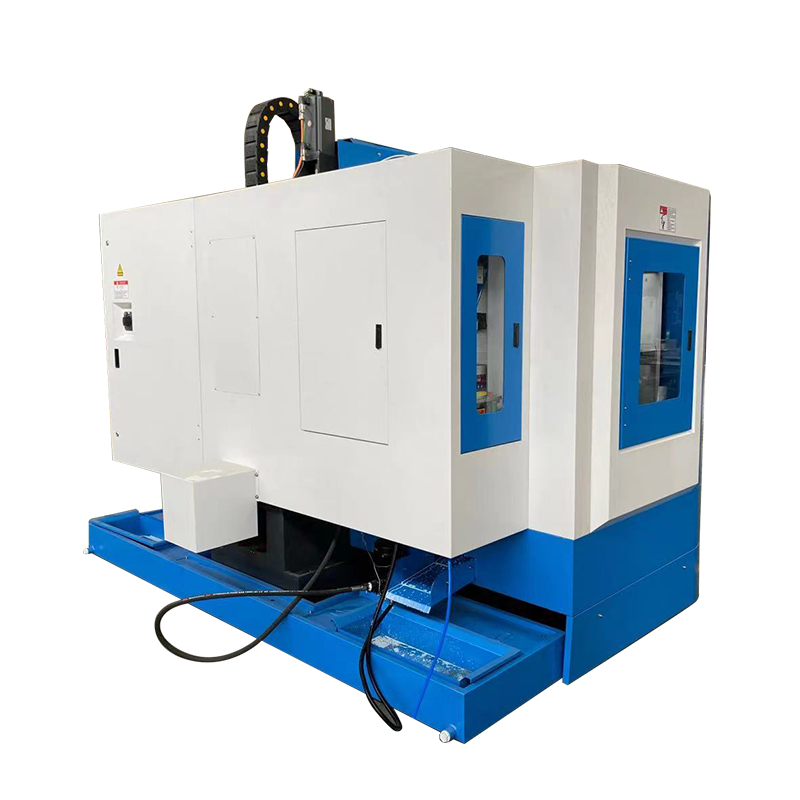

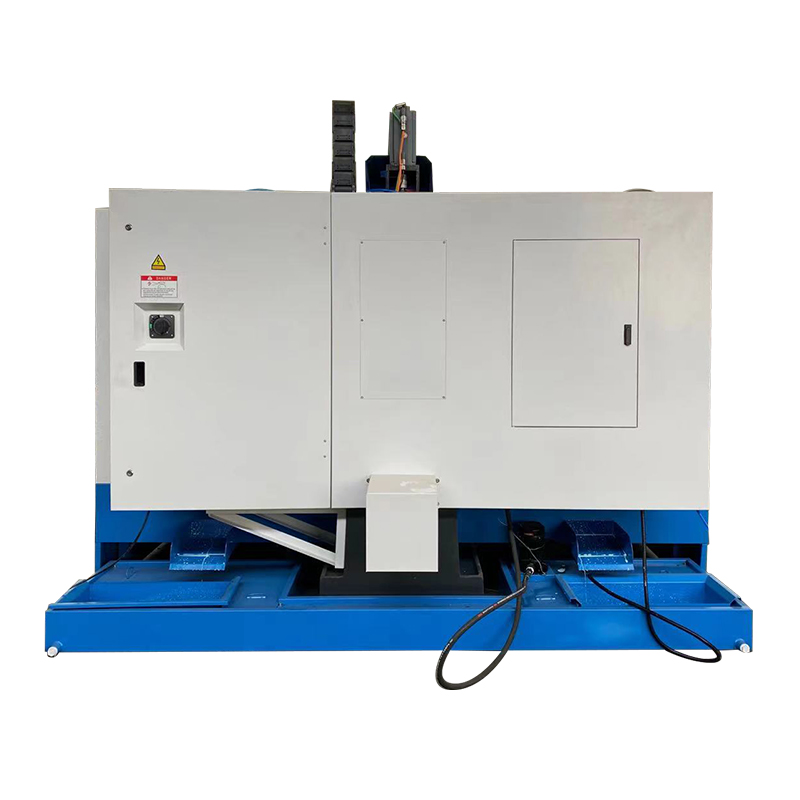

XK7136 3 AXIS CNC MILL WITH 12 POSITION ATC

Share to:

XK7136 3 AXIS CNC MILL WITH 12 POSITION ATC

Model:
XK7136
Brand:
WMT
Code:
8459619000

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

Used for machining box parts, shell parts, disc-shaped parts
Dovetail guideway with plastic sticking, high rigidity, high stability and strong support
Pneumatically tool clamping

XK7136

Specification	XK7136
Worktable size（LxW）	1250x360mm
T-slot (NxWx D)	3/18/80mm
X axis travel	900mm
Y axis travel	350mm
Z axis travel	500mm
Distance from spindle nose to worktable surface	100-600mm
Distance from spindle center to column	460mm
Rapid feed speed（X/Y/Z)	10/10/8m/min
Spindle taper	BT40
Spindle speed range	8000rpm
Main motor power	5.5kw
AC servo motor torque（X/Y/Z)	7.7/7.7/7.7N.m
Over size(LxWxH)	2200x1850x2350mm
Net weight	2400kgs

Standard Equipment:

Taiwan Royal/Volis BT40 spindle, spindle speed:60-8000rpm

Full sheet metal cover , 16 pcs umbrella type ATC

casting iron stand
cooling system , work light, automatic lubrication system
pneumatic tool changing
8pcs milling chuck, tool box with tools

Optional Equipment

GSK 980MDC, GSK980MID, GSK218M controller

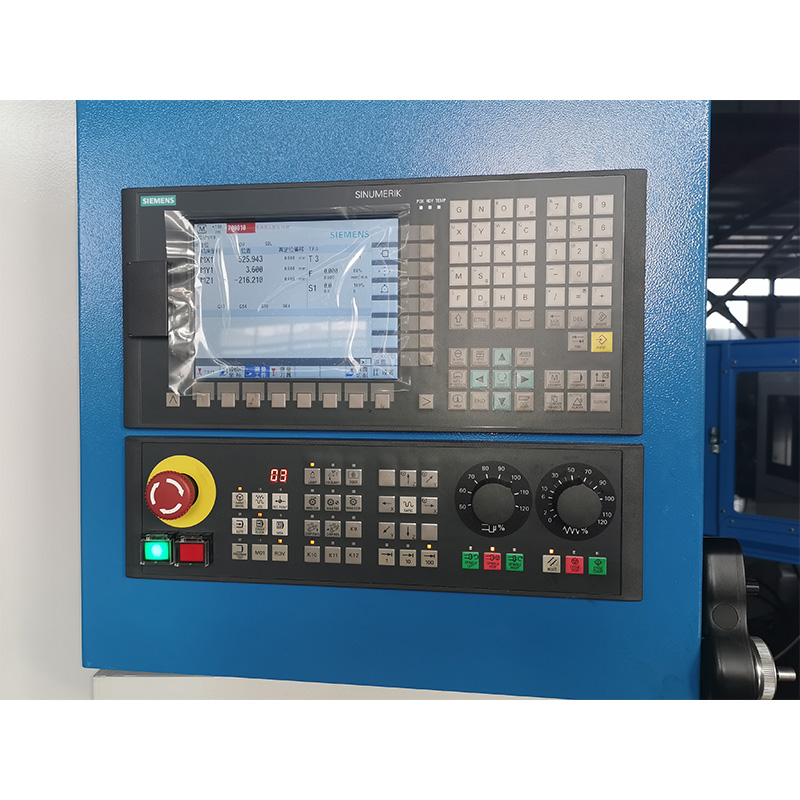

Siemens 808D controller

Siemens 808D Advance controller

Fanuc Oi MF controller

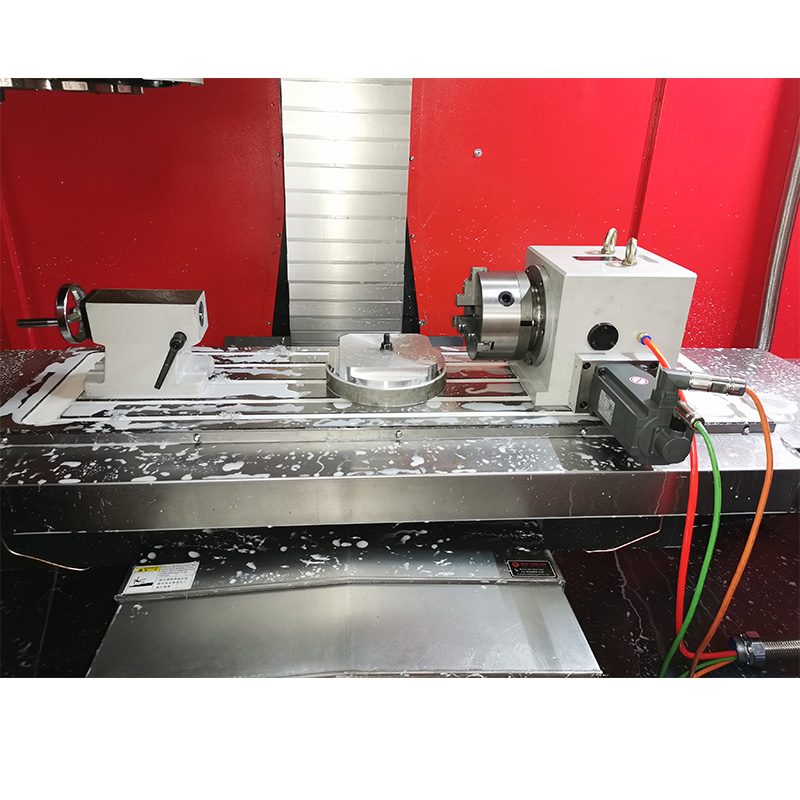

4th axis NC dividing head or rotary table

XK7136细节

XK7136细节1

XK7136细节2
