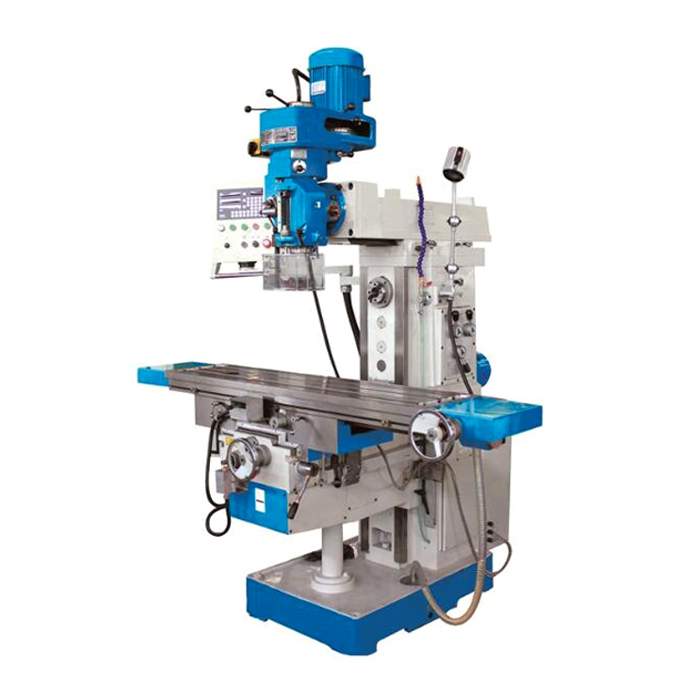

XL6330A
WMT
84592900
| Quantity: | |
|---|---|
Product Description
Features:
the machine uses a servo motor control table three to the automatic feeding of large torque, energy saving, safe and reliable
Taiwan original 5HP machine configuration section milling head
standard machine with horizontal axis, increasing the use range of the machine
| Specifications | XL6330 | XL6330A |
| Table size | 1270X300mm | 1370X300mm |
| Table travel (X/Y/Z) | 720/300/400mm | 820/300/400mm |
| Rapid speed of table (X/Y/Z) | 1335/1335/1000mm/min | |
| Spindle taper | Vertical : 3HP: R8 or ISO30; 5HP: ISO40 Horizontal : ISO40 | |
| Table feed (X/Y/Z) | XY:30-830 Z:23-625mm/min | |
| Distance between horizontal nose and table surface | 75-475mm | |
| Distance between spindle axis and ram surface | 200mm | |
| Spindle speed range | vertical:1,variable speed 43-3225 2,step speed 65-4660(16 steps)r/min | |
| horizontal 35-1500 (12steps) | ||
| T-slots(No./width/pitch) | 3/14/80mm | |
| Arm travel | 450mm | |
| Main motor power | vertical: 3hp / 5hp horizontal: 3kw | |
| Torque of X/Y/Z axis AC servo motor | 10N.m | |
| Overall size | 1720×1680×2350mm | 1820×1680×2350mm |
| Net weight | 1650kg | 1700kg |
