XL6436 52''x14'' Universal Milling Machine with Power Feed

  • XL6436
  • WMT
  • 84592900
Availability:
Quantity:

Product Description

Features

  • Machine with automatic feed controlled by one servo motor in X/Y/Z axis

  • Use one handle to control forward and reverse movement in X/Y/Z axis

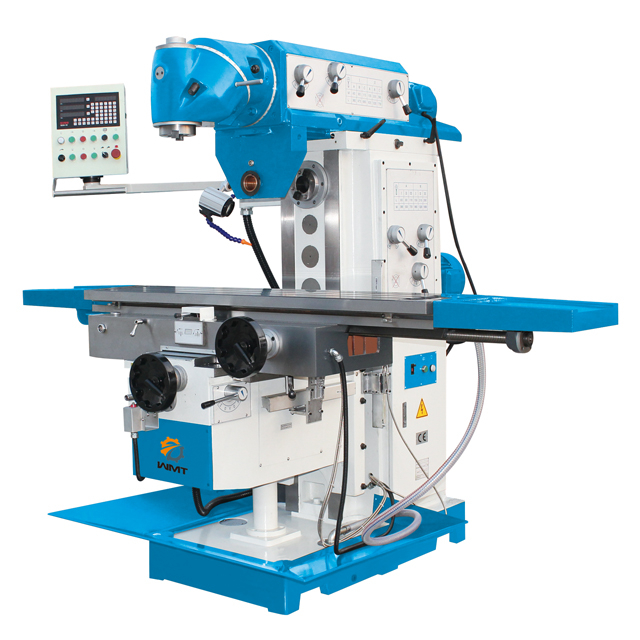

XL6346

Specification XL6436
Table size 1325×360mm
Table travel (X/Y/Z) 750×300×450mm
Table feed (X/Y/Z) 30-750/20-500/15-375mm/min.
Spindle taper 7:24 ISO50 (H/V)
Table load capacity (max.) 500kg
T-slots (qty/width/spacing) 3/18/80mm
Spindle speed(12 step) 60-1750rpm(V)    60-1800rpm(H)
Upper beam travel 550mm
Distance between spindle nose and table surface 196-656mm
Distance between horizontal nose and table surface 20-480mm
Distance between spindle axis  and arm surface 200mm
Spindle speed(12 step) 60-1750rpm(V)  60-1800RPM(H)
Main motor power 4KW(V)  5.5KW(H)
3 phase AC feeding servo motor torque 10N.m
Overall size 1800×2100×2000mm
NW 2650kg

Standard accessories:

  • Milling chuck

  • Drill chuck

  • Reduction sleeve

  • Wrench
