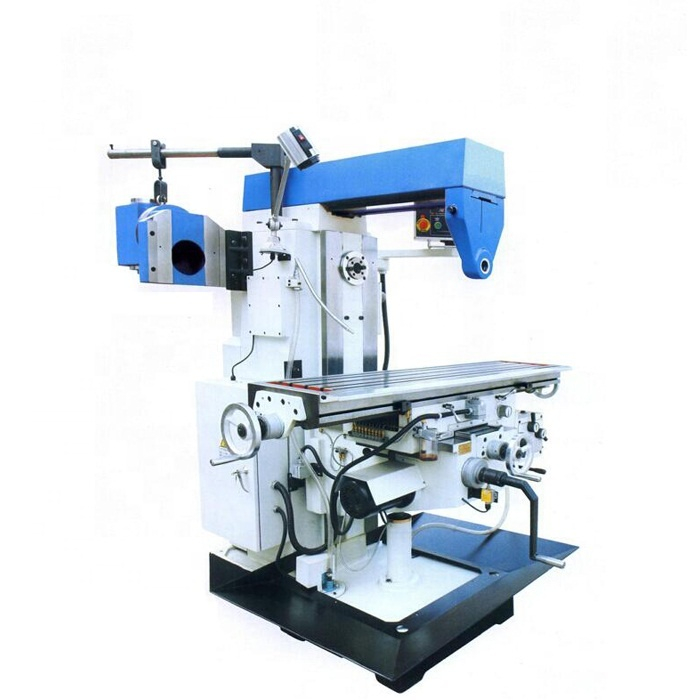

Product Description
| Specification | XU28 | XU32 |
| Spindle taper | ISO40 | ISO40 |
| Distance from horizontal spindle to worktable | 0-400mm | 0-400mm |
| Spindle speed | (12 steps) 48-1560rpm (horizontal) | (12 steps) 42-1320rpm (horizontal) |
| Table size | 1270x280mm | 1370x320mm |
| Table travel | 750/300/400mm | 740/320/400mm |
| Feeding range of longitudinal, cross travel | (8 steps) 22-555mm/min (rapid 1080) | (8 steps) 22-555 (rapid 1080) |
| Auto feeding of Z axis | 560mm/min | 560mm/min |
| T-slot (number-width-distance) | 3-14-70 | 3-14-70 |
| Main motor | 3 | 4 |
| Motor for rapid device of table | 750W | 750W |
| Motor for vertical device of table | 750W | 750W |
| Overall dimension | 1600x1500x2000mm | 1700x1600x2000mm |
| N.W./G.W. | 1500/1600kgs | 1900/2000kgs |
