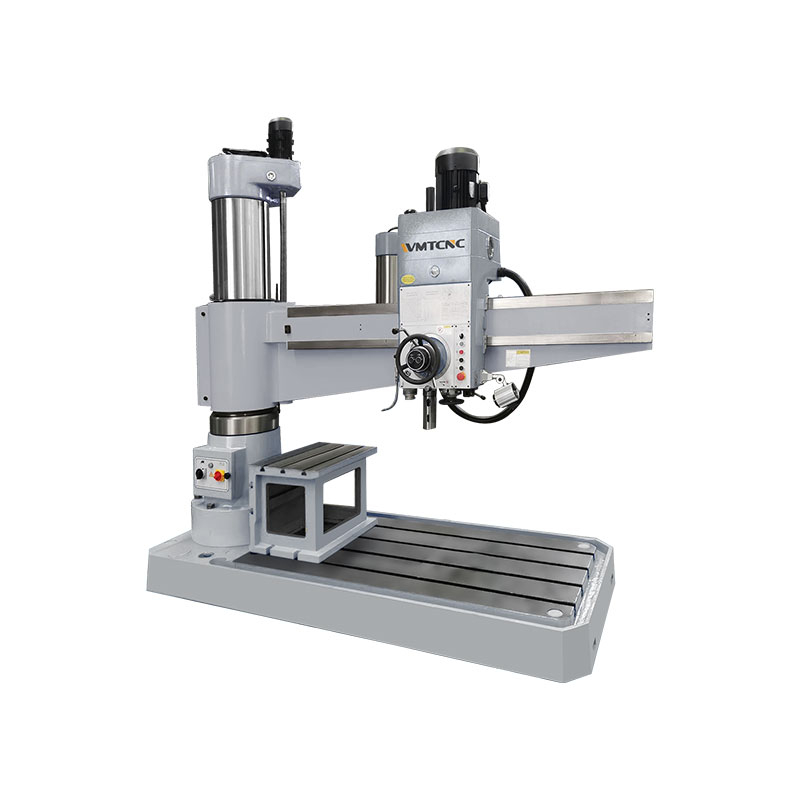

Z3040X13 Hydraulic Radial Drilling Machine with 280mm Spindle Travel

Main Features:

1.The main key parts are made of strong  cast iron and steel

2.The hydraulic pre-selection speed change mechanism is adopted to save auxiliary time.

3.The spindle forward and reverse rotation, parking (braking), speed change, neutral gear and other actions are controlled by one handle which is easy to operate.

4.The spindle box, rocker arm, inner and outer columns adopt a hydraulically driven diamond block clamping mechanism for clamping.

5.The 16-level spindle speed and feed can be selected for economical cutting.

6.The rocker arm guide rail, the outer column circular surface, the spindle, the spindle sleeve and the inner and  outer column rotary raceway are all quenched to ensure the stability of the machine tool accuracy and service life.

7.There are complete protective devices and outer column protection.

8.In terms of structural design and manufacturing process, a series of effective measures have been taken to extend the accuracy of the machine tool and the service life of the whole machine.
