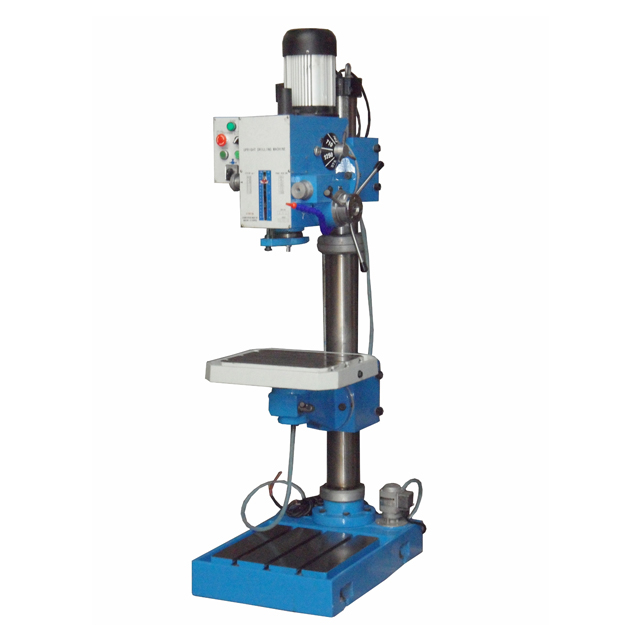

Z5032/1
WMT
| Quantity: | |
|---|---|
Product Description
| Specification | Z5032/1 Z5040/1 Z5045/1 |
| Max.drilling capacity | Φ32mm/Φ40mm/Φ45mm (1-1/4"/1-5/8"/1-3/4") |
| Spindle taper | MT3/MT4/R8 |
| Spindle travel | Φ130mm(5-1/8") |
| Step of spindle speed | 6 steps |
| Range of spindle speed 50Hz | 80-1250rpm |
| 60Hz | 95-1500rpm |
| Step of spindle auto-feeding | 3 steps |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r |
| Min.distance from spindle axis to column | 290mm(11-3/8") |
| Max.distance from spindle nose to worktable | 725mm(28-1/2") |
| Max.distance from spindle nose to stand table | 1125mm(44-1/4") |
| Max.travel of headstock | Φ250mm(10") |
| Swivel angle of headstock (horizontal / perpendicular) | 360° |
| Max.travel of worktable bracket | Φ600mm(23-5/8") |
| Worktable size of avaliablity | 380×300mm |
| Swivel angle of table horizontally | 360° |
| Table leaned | ±45° |
| Size of stand worktable of avaliability | 417×416mm |
| Motor Power | 0.75kw/1.1kw/1.5kw |
| speed of motor | 1400rpm |
| N.W/G.W | 440/490kgs |
| Packing size | 1850×750×1000mm |
| Loading amount/20" container | 18pcs |
Features:
1) Drilling, milling and tapping
2) Headstock and worktable up and down perpendicularly
3) Head swivels 360°horizontally
4) Gear driven, lower noise
5) Positive spindle lock
Standard Accessories:
1) Drill chuck and arbor
2) Arbor
3) Allen wrenchs
4) Coolant pump
5) Wedge
6) Draw bar
