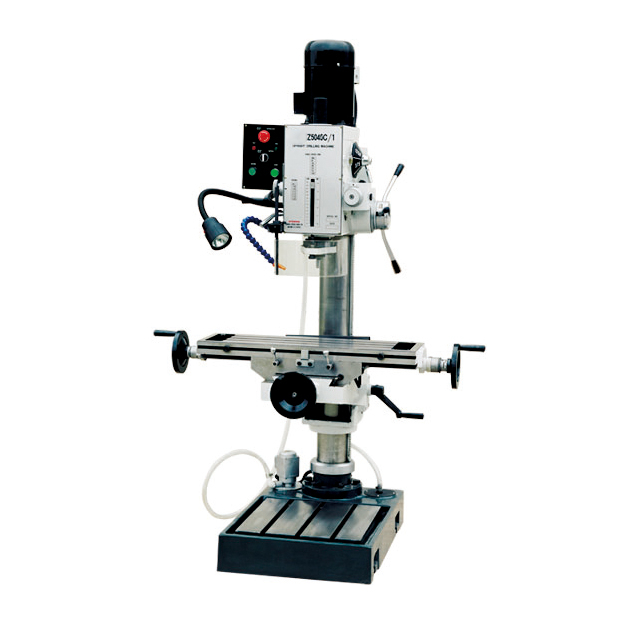

Z5040/1 Veryical Drilling Machine

  • Z5040/1
  • WMT
Availability:
Quantity:

Product Description

Z5040-1

Item Z5040/Z5040E
 Max.drilling capacity(steel)  40mm
 Max.tapping capacity(Iron/steel)  24/20mm
 Spindle taper  MT4
 Worktable size  560×560mm
 Dimensions of base  730×500mm
 Spindle travel  180mm
 Spindle center to column surface  350mm
 Spindle nose to worktable  770mm
 Spindle nose to base  1210mm
 Column diameter  150mm
 Max. swivel angle of table 90
 Spindle speeds (2 step motor)  18steps:50-1450rpm
 Spindle power down feed  0.1/0.2 mm/r
 Cooling motor  60W
 Motor  1.5kw
 Machine weight (Net/Gross)  550/600KG
 Packing size(L×W×H)  2230×580×110mm
