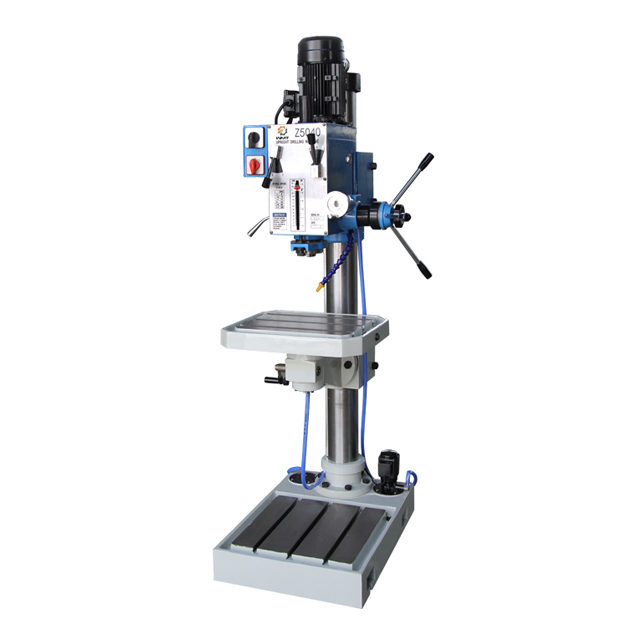

Z5040 Mechanic power feeding machine

  • Z5040 Mechanic power feed
  • WMT
Availability:
Quantity:

Product Description

Z5040机械自动进给

Specification
Z5032/1 Z5040/1 Z5045/1
Z5032 Z5040 Z5045
Max.drilling capacity
Φ32mm/Φ40mm/Φ45mm
Spindle taper
MT3/MT4/R8
Spindle travel
Φ130mm
Step of spindle speed
6 steps
Range of spindle speed 50Hz
80-1250rpm
60Hz
95-1500rpm
Step of spindle auto-feeding
6 steps
/
Range of spindle auto-feeding amount
0.06-0.30rpm
/
Min.distance from spindle axis to column
290mm
Max.distance from spindle nose to worktable
725mm
700mm
Max.distance from spindle nose to stand table
1125mm
Max.travel of headstock
Φ250mm
Swivel angle of headstock(horizontal/vertical)
360°
Max.travel of worktable bracket
Φ600mm
Worktable size of avaliablity
380×300mm
730×210mm
Swivel angle of table horizontally
360°
Table leaned
±45°
/
Size of stand worktable of avaliability
417×416mm
Motor Power
0.75kw/1.1kw/1.5kw
0.75kw/1.1kw/1.5kw
Speed of motor
1400rpm
1400rpm
N.W/G.W
440/490kgs
470/530kgs
Packing size
1850×750×1000mm
1850×950×1000mm
Loading amount/20" container
18pcs
12pcs
