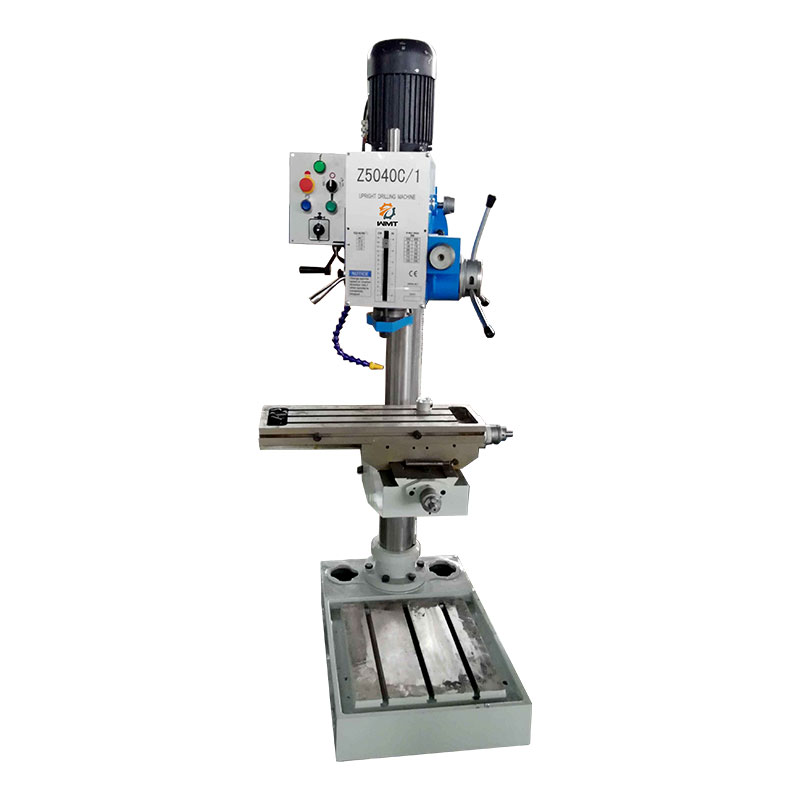

Z5040C/1 spindle auto-feeding vertical drilling machine with cross table

  • Z5040C/1
  • WMT
Availability:
Quantity:

Product Description

Z5040C-1Z5040C-2

Specification Z5040/1
Max.drilling capacity Φ32mm/Φ40mm/Φ45mm
Spindle taper MT3/MT4/R8
Spindle travel Φ130mm
Step of spindle speed 6 steps
Range of spindle speed 50Hz 80-1250rpm
60Hz 95-1500rpm
Step of spindle auto-feeding 3 steps
Range of spindle auto-feeding amount 0.06-0.30rpm
Min.distance from spindle axis to column 290mm
Max.distance from spindle nose to worktable 725mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock Φ250mm
Swivel angle of headstock(horizontal/vertical) 360°
Max.travel of worktable bracket Φ600mm
Worktable size of avaliablity 380×300mm
Swivel angle of table horizontally 360°
Table leaned ±45°
Size of stand worktable of avaliability 417×416mm
Motor Power 1.5kw
Speed of motor 1400rpm
N.W/G.W 440/490kgs
Packing size 1850×750×1000mm
Loading amount/20" container 18pcs
