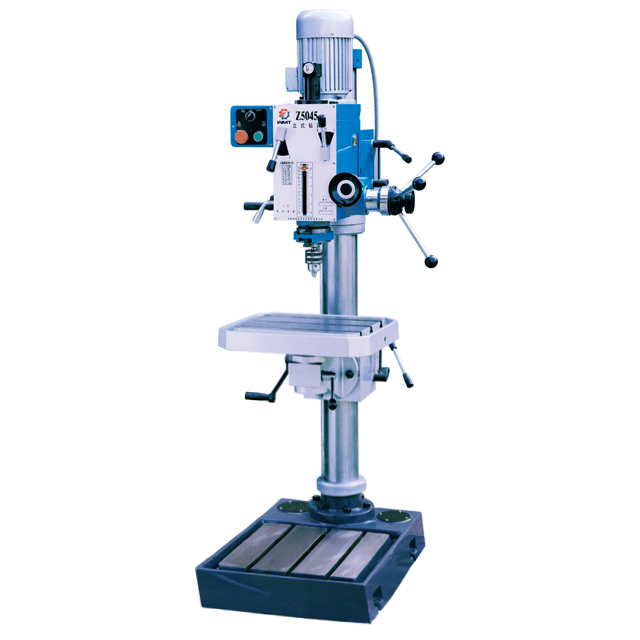

Item | Z5045 |
Max.drilling capacity(iron/steel) | 45mm |
Spindle taper | MT4 |
Worktable size | 380×380mm |
Spindle travel | 130mm |
Spindle nose to worktable | 700mm |
Spindle nose to base | 1125mm |
Column diameter | 98mm |
Spindle speeds range | 6steps:80~1500rmp |
Motor | 1.5kw |
N.W/G.W | 470/530KG |
Packing size(L×W×H) | 1850×950×1000mm |
Features:
1.Drilling, milling and tapping
2.Headstock and worktable up and down perpendicularly
3.Head swivels 360°horizontally
4.Gear driven, lower noise
5.Positive spindle lock
Standrad accessories:
1. Drill chuck 1-13mm/B16;
2. Draw bar;
3. Allen wrenchs;
4. Wedge;
5.Tie rod
Optional accessories:
1.Steel stand and chip tray ;
2. Halogen lamp;
3.Coolant system;
4. 58pcs clamping kits;
5. Face milling cutter diameter 63mm;
6.Milling chuck(8pcs/set);
7.DRO(2-axis or 3-axis)(for FG and FG-1 serials) ;
8.H/V precision rotary table HV-150mm
9.Table power feed X axis (Except for belt driven type);
10. Double speed motor
