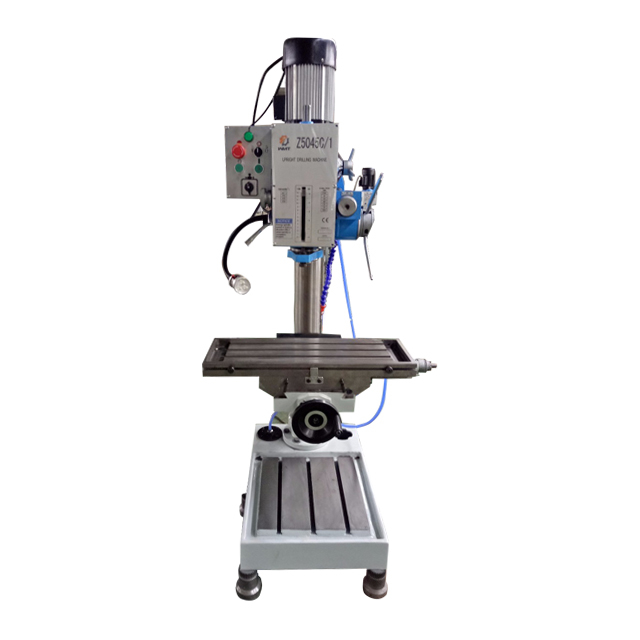

Z5045C/1 Spindle Auto-feed Vertical Drilling Machine with CE Certification

  • Z5045C/1

  • WMT

Availability:
Quantity:

Product Description

Z5045C-1

Specification Z5045C/1
Max.drilling capacity 45mm
Spindle taper M.T.4
Spindle travel 130mm
Step of spindle speed 6
Range of spindle speed  50Hz 80-1250 r.p.m
                                       60Hz   95-1500 r.p.m
Min.distance from spindle axis to column 283mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock 250mm
Swivel angle of headstock(horizontal/perpendicular) 360°/±90°
Max.travel of worktable bracket 600mm
Table size 700×240mm
Size of stand worktable of avaliability 417×416mm
Forward and afterward travel of worktable 205mm
Left anf right travle of worktable 500mm
Vertical travel of worktable 570mm
Motor Power 1.5KW(2HP)
Voltage/Frequency As customer's requirement
speed of motor 1400 r.p.m
Net weight/Gross weight 435kg/505kg
Packing size 1850×750×1000mm
Loading amount 18pcs/20'container
