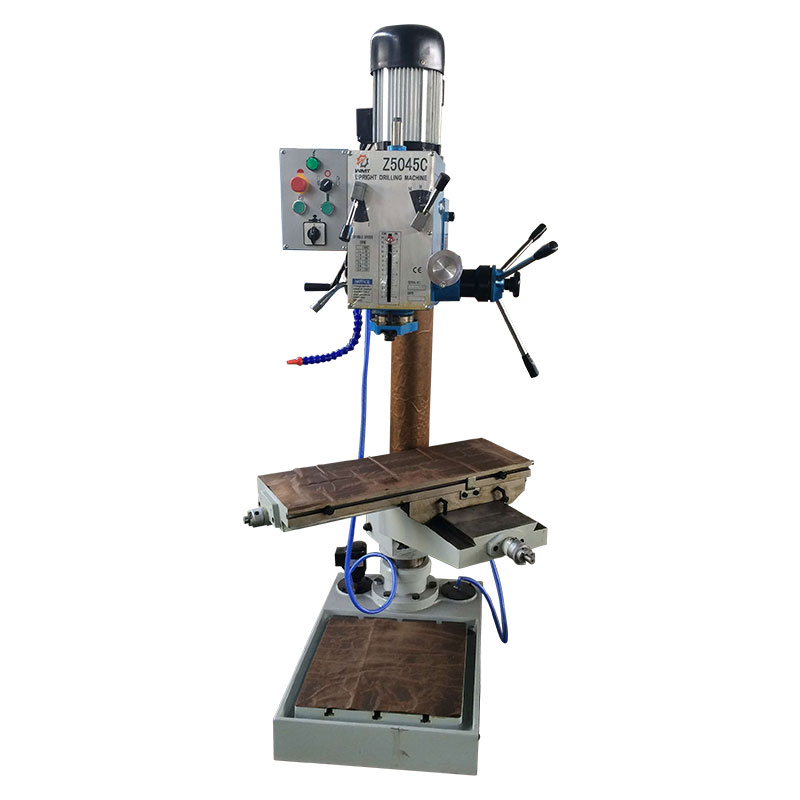

Z5045C Vertical Drilling Machine with Cross Table

  • Z5045C
  • WMT
Availability:
Quantity:

Product Description

Z5045C

Specification Z5045C
Max.drilling capacity Φ32mm/Φ40mm/Φ45mm
Spindle taper MT3/MT4/R8
Spindle travel Φ130mm
Step of spindle speed 6 steps
Range of spindle speed 50Hz 80-1250rpm
60Hz 95-1500rpm
Step of spindle auto-feeding /
Range of spindle auto-feeding amount /
Min.distance from spindle axis to column 290mm
Max.distance from spindle nose to worktable 700mm
Max.distance from spindle nose to stand table 1125mm
Max.travel of headstock Φ250mm
Swivel angle of headstock(horizontal/vertical) 360°
Max.travel of worktable bracket Φ600mm
Worktable size of avaliablity 730×210mm
Swivel angle of table horizontally 360°
Table leaned ±45°
Size of stand worktable of avaliability 417×416mm
Motor Power 1.5kw
Speed of motor 1400rpm
N.W/G.W 470/530kgs
Packing size 1850×950×1000mm
Loading amount/20" container 12pcs
