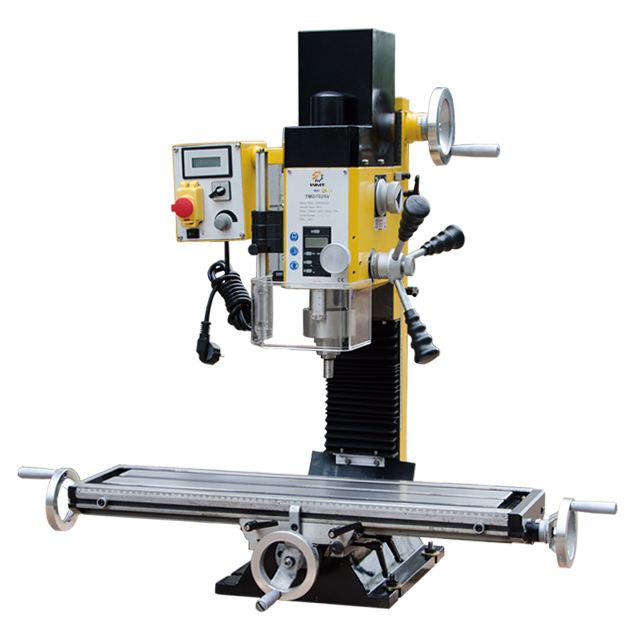

ZAY7020V 27 9/16" x 7 1/16" Gear Drive Milling Machine

  • ZAY7020V
  • WMT
Quantity:

Product Description

Features:

1)High precision bored and honed milling head

2) Precision ground worktable

3) Tilting and swiveling head

4) With micro-speed handwheel and fast feed lever

5) Adjustable gibs and stops on table

6) Accurate position, strong rigidity, strong cutting power

7) Gear drive,lower noise

ZAY7020V

Specification ZAY7020V
Max. drilling capacity 20mm
Max. face mill capacity 63mm
Max. end mill capacity 20mm
Max. distance spindle to table 355mm
Working table size 500(700) x 180mm
Swivel angle of headstock ±45 °
Spindle taper MT2
Spindle speed 50-2250rpm
Sleeve stroke 50mm
X-axis travel 290/490mm
Y-axis travel 180mm
Z-axis travel 380mm
Motor power 600w
N.W/G.W 118/138kgs (130/160kgs)
Packing size (LxWxH) 610(810)×560×880 mm



Standard Accessories:

1) Speed display

2) Halogen lamp

3) Morse taper

4) Draw bar M10

5) Drill chuck and arbor

6) Toolbox with tools
