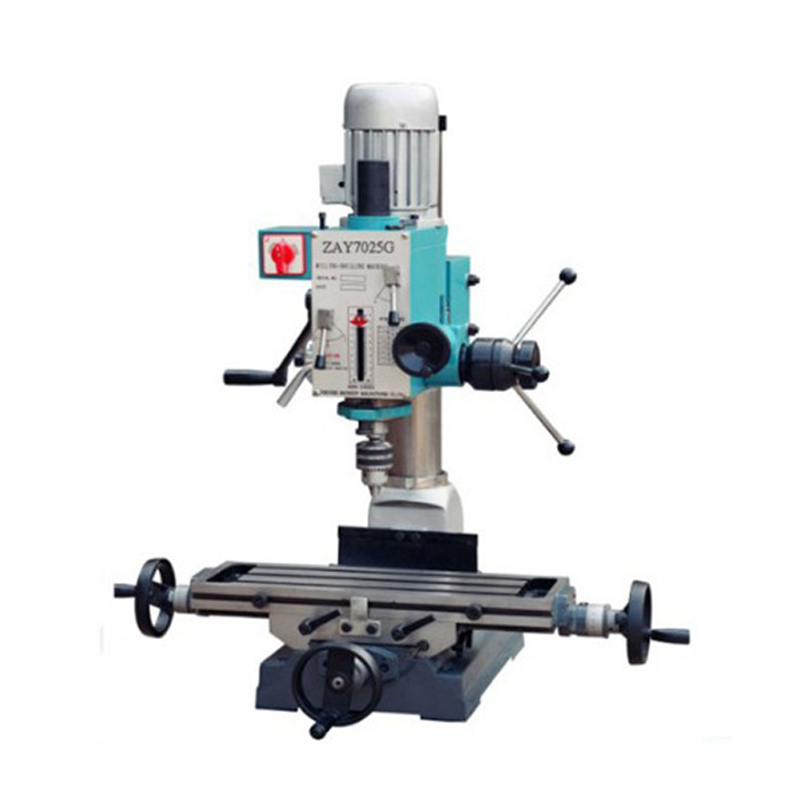

ZAY7025G Factory Promotion Sale Small Size Home Use Bench Type Drilling And Milling Machine with CE

  • ZAY7025G
  • WMT
Quantity:

Product Description

Features:

  • Milling drilling tapping boring anf reaming

  • Head swivels ±90° verticaly

  • Adjustable gibs on table precision

  • Micro feed precision

  • Strong rigidity powerful cutting and precise positioning

ZAY7025G

Model ZAY7025G ZAY7025FG
Drilling capacity Φ25mm(1")
Face milling capacity Φ63mm(2-1/2")
End milling capacity Φ20mm(3/4")
Distance from spindle nose to table 439mm(17-1/4") 445mm(17-1/2")
Min.distance from spindle axis to column 197.5mm(7-3/4") 203mm(8")
Spindle travel 80mm(3-1/8")
Spindle taper MT3 or R8
Step of spindle speed 6 steps
Range of spindle speed 50Hz 95-1420 rpm
60Hz 115-1700 rpm
Swivel angle of headstock horizontally 360° /
perpendicularly ±90°
Table size 520×160mm (20-1/2"×6-5/16")
Forward and backward travel of table 140mm(5-1/2")
Left and right travel of table 290mm(11-3/8")
Motor power 0.37KW
Net weight/gross weight 130kg/190kg 180kg/240kg
Packing size 680×750×1000mm
Loading amount/20" container 48pcs
