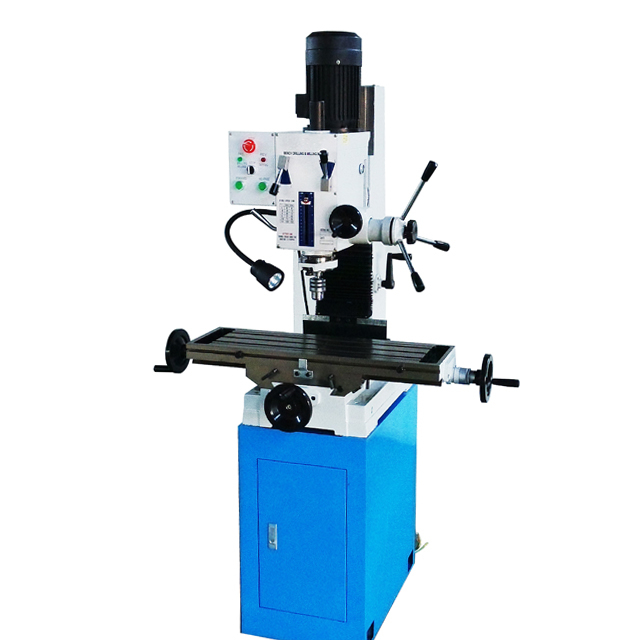

ZAY7032FG 31 1/2" X 9 1/2" Gear-Head Milling Machine

  • ZAY7032FG
  • WMT
Availability:
Quantity:

Product Description

ZAY7032FG

Specification ZAY7032FG
Drilling capacity Φ32mm
Face milling capacity Φ63mm
End milling capacity Φ20mm
Distance from spindle nose to table 450mm
Min.distance from spindle axis to column 260mm
Spindle travel 130mm
Spindle taper MT3 or R8
Step of spindle speed 6 steps
Range of spindle speed      50Hz 80-1250 r.p.m
                            60Hz                   95-1500 r.p.m
Swivel angle of headstock (vertical) ±90°
Table size 800×240mm
Forward and backward travel of table 175mm
Left and right travel of table 500mm
Motor Power 1.5kw
N.W/G.W 325/375kgs
Packing size 770×880×1160mm

Features:

1) High precision grinding all steel spindle

2) High strength with square column

3) Good strength gear grinding, low noise

4) Headstock tilts left and right

5) Wide electrical box, easy operation

6) Accurate position, strong rigidity, powerful cutting

7) Gear-driven type


Standard Accessories:

1) Drill chuck and arbor

2) Draw bar

3) Allen wrenches

4) Wedge

5) Toolbox with tools
