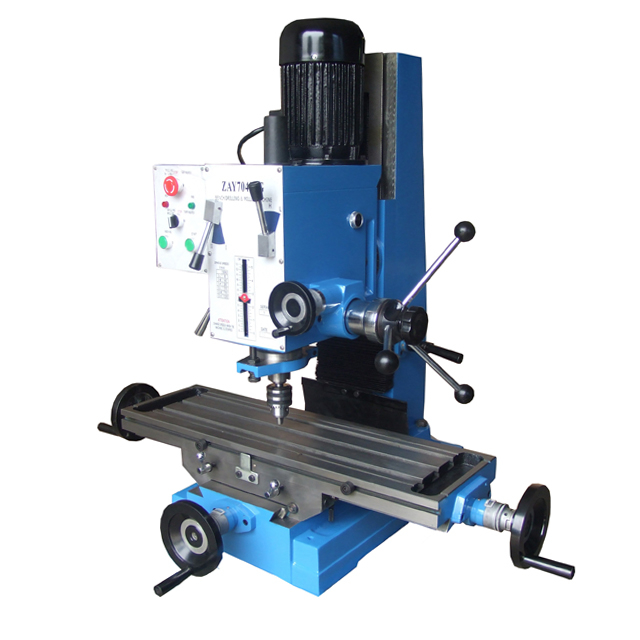

ZAY7040FG WMT Machine Tools 31 1/2" X 9 1/2" MILL DRILL WITH POWER FEED

  • ZAY7040FG

  • WMT

Availability:
Quantity:

Product Description

ZAY7040FG

Specification  ZAY7040FG
Drilling capacity Φ40mm
Face milling capacity Φ80mm
End milling capacity Φ32mm
Distance from spindle nose to table 450mm
Min.distance from spindle axis to column 260mm
Spindle travel 130mm
Spindle taper MT4 or R8
Step of spindle speed 6 steps
Range of spindle speed      50Hz 80-1250 r.p.m
                            60Hz         95-1500 r.p.m
Swivel angle of headstock (vertical) ±90°
Table size 800×240mm
Forward and backward travel of table 175mm
Left and right travel of table 500mm
Motor Power 1.5kw
N.W/G.W 325/375kgs
Packing size 770×880×1160mm

Features:

1) High precision grinding all steel spindle

2) High strength with square column

3) Good strength gear grinding, low noise

4) Headstock tilts left and right

5) Wide electrical box, easy operation

6) Accurate position, strong rigidity, powerful cutting

7) Gear-driven type


Standard Accessories:

1) Drill chuck and arbor

2) Draw bar

3) Allen wrenches

4) Wedge

5) Toolbox with tools
