ZAY7040V-1/ZAY7032V-1/ZAY7045V-1 31 1/2" x 9 1/2" VARIABLE SPEED MILL DRILL - Milling Machines

  • ZAY7040V-1/ZAY7032V-1/ZAY7045V-1

  • WMT

Availability:
Quantity:

Product Description

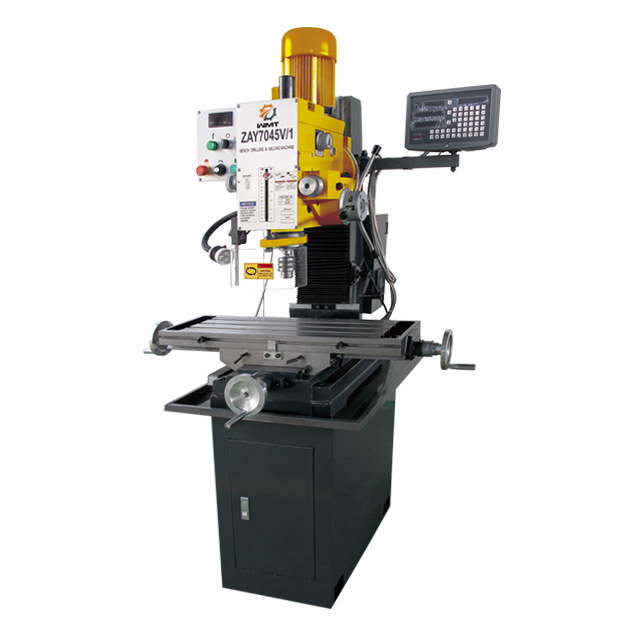

ZAY7045V-1

Specification ZAY7032V/1 ZAY7040V/1 ZAY7045V/1
Max.Drilling capacity 32mm 40mm 45mm
Max.face mill capacity 63mm 80mm 80mm
Max.end mill capacity 20mm 32mm 32mm
Max.distance from spindle nose to table 450mm
Min. distance from spindle axis to column 260mm
Spindle travel 130mm
Spindle taper MT3 or R8 MT3 or R8 MT4 or R8
Range of spindle speed(2 steps) 100-530, 530-2800rpm
Auto-feeding steps of spindle 6 steps
Auto-feeding amount of spindle 0.06-0.30mm/r
Swivel angle of headstock(perpendicular) ±45°
Table size 800×240mm
Forward and backward travel of table 175mm
Left and right travel of table 500mm
Motor power(DC) 1.1kw 1.1kw 1.5kw
N.W/G.W 320/370kgs 320/370kgs 325/375kgs
Packing size(L*W*H) 770×880×1160mm 770×880×1160mm 770×880×1160mm

Features:

1)Variable speed

2) Milling, drilling, tapping, boring and reaming

3) Head swivels ±45°vertically

4) Micro feed precision

5) Adjustable gibs on table

6) Strong rigidity, powerful cutting and precise positioning


Standard Accessories:

1) Wedge

2) Allen wrenches

3) Drill chuck and arbor

4) Draw bar

5) Toolbox with tools
