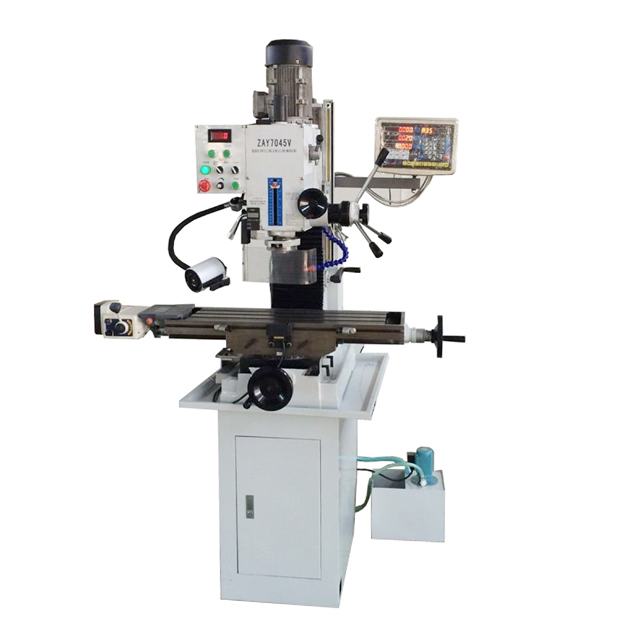

ZAY7045V 31 1/2" X 9 1/2" Gear Drive Milling Machine W. X Axis Power Feeder & 3 Axis DRO

  • ZAY7045V
  • WMT
Availability:
Quantity:

Product Description

ZAY7045V

Model ZAY7032V ZAY7040V ZAY7045V
Max drilling capacity 32mm 40mm 45mm
Max Face mill capacity Φ63mm Φ80mm Φ80mm
Max End mill capacity Φ20mm Φ32mm Φ32mm
Max distance from spindle nose to table 400mm
Min distance from spindle axis to column  260mm
Spindle travel 130mm
Spindle taper MT3 , MT4 or R8
Range of spindle speed  100-530rpm  530-2600rpm
Swivel angle of headstock (perpendicular)  ±90°
Table size 800×240mm
Forward and backward travel of table 175mm
Left and right travel of table 500mm
Motor Power 1.1KW/1.1KW/1.5KW
Net/Gross weight  300kgs/ 350kgs
Packing size 770×880×1160mm
Loading amount/20" container          36pcs

Features:

1)Variable speed

2) Milling, drilling, tapping, boring and reaming

3) Head swivels ±45°vertically

4) Micro feed precision

5) Adjustable gibs on table

6) Strong rigidity, powerful cutting and precise positioning


Standard Accessories:

1) Wedge

2) Allen wrenches

3) Drill chuck and arbor

4) Draw bar

5) Toolbox with tools
