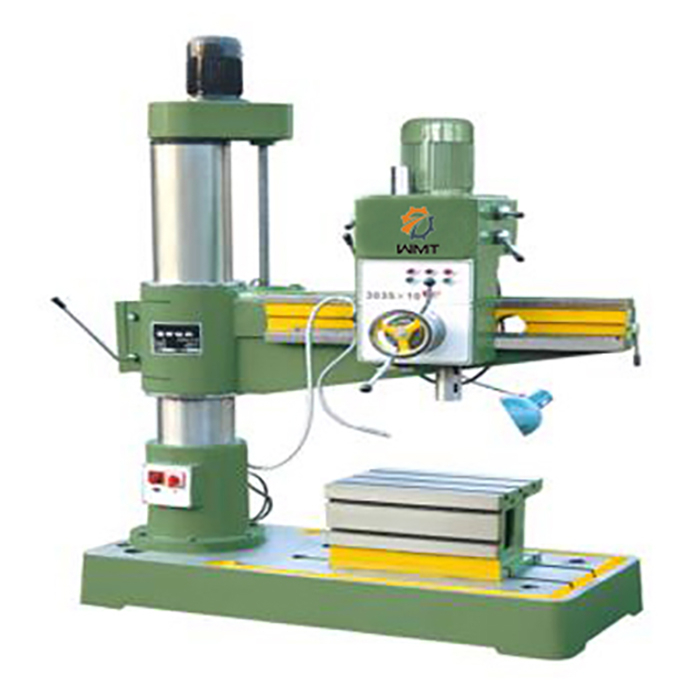

ZQ3035x10 Manual Type Wide Use Radial Drilling Machine

  • ZQ3035x10
  • WMT
Quantity:

Product Description

Features:

  • Radial drilling machine

  • Transmission:Mechanical transmission

  • Max. drilling diameter:35mm

  • Spindle taper:Morse 4

  • Spindle travel:200mm

ZQ3035x10

Technical parameters ZQ3035×10
Max Drilling Diameter(mm) steel 32 /iron 35
Spindle center to column (mm) 360-900
spindle box travel (mm) 550
Spindle nose to table (mm) 260--1000
Spindle travel (mm) 200
Spindle taper(Morse) 4
Spindle speed range (r/min) 75/130/240/380/660/1200
Spindle speeds series(mm/r) 0.10/0.16/0.25
Radial rotation Angle 360°
Main motor power( kw) 2.2
Lifting Motor Power ( kw) 0.75
Machine weight (kgs) 1100
Machine overall size (L*W*H mm) 1550×720×2050
