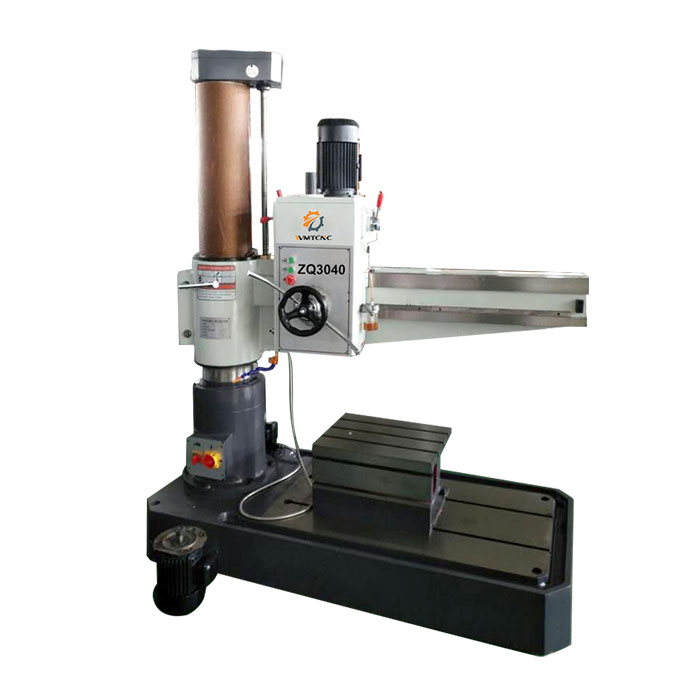

ZQ3040 Mechanical Radial Drilling Machine for Metal Drill

  • ZQ3040
  • WMT

Product Description


  • Radial drilling machine

  • Transmission:Mechanical transmission

  • Max. drilling diameter:40mm

  • Spindle taper:Morse 4

  • Spindle travel:200mm


Technical parameters ZQ3040×13
Max Drilling Diameter(mm) steel 32 /iron 40
column dia(mm) 280
Spindle center to column (mm) 300-1300
spindle box travel (mm) 1000
Spindle nose to table (mm) 250--1200
Arm lifting travel (mm) 670
Spindle travel (mm) 270
Spindle taper(Morse) 4
Spindle speed range (r/min) 75/130/240/380/660/1220
Spindle speeds series(mm/r) 0.10/0.16/0.25
Arm lifting speed (m/min) 1.3
Radial rotation Angle 360°
Main motor power( kw) 2.2
Lifting Motor Power ( kw) 0.55
Coolant motor power ( kw) 0.04
Machine weight (kgs) 2000
Machine overall size (L*W*H mm) 2000×800×2240
