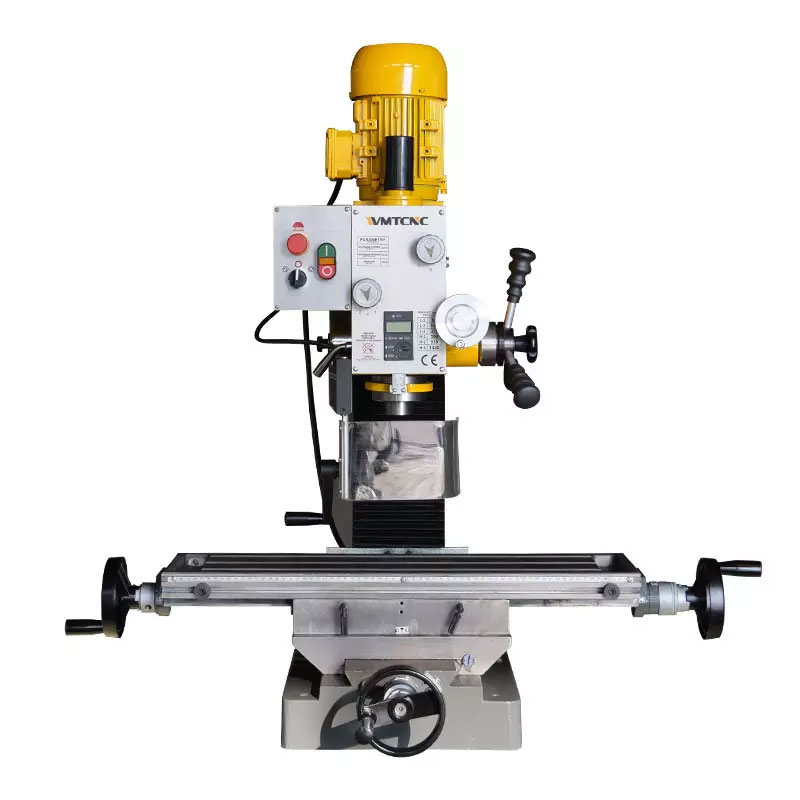

ZX32G 27 9/16" X 7 1/16" Mini Benchtop Drilling Milling Machine R8

  • ZX32G
  • WMTCNC
Availability:
Quantity:

Product Description

Features:
1. Milling and drilling machine.
2. CE high preision Drilling and Milling machine.
3. High strength column.
4. Good strength gear griding ,low nose.
5. Head stock tilts left and right.
6. Wide electrical box,easy operation.
7. High presion manual feeder.
8. Depth ruler,easy operation and read.

ZX32G

Specification ZX32G ZX32GV
Max drilling capacity 32mm 32mm
Max tapping capacity 16mm 16mm
Max face milling capacity 63mm 63mm
Table size 700*180mm 700*180mm
Spindle taper MT3/R8 MT3/R8
X-axis travel 410mm 350mm
Y-axis travel 205mm 230mm
Z-axis travel 310mm 380mm
Spindle travel 85mm 75mm
T-slot size 12mm 12mm
Spindle speed range 95-1420rpm 92-1420rpm
Headstock tilt left and right 90 degree 90 degree
Column size 150×130×690mm 150×130×690mm
Base size 550×340mm 550×340mm
Max. distance from spindle center to column 203mm 214mm
Max. distance from spindle center to table 336mm 400mm
Motor power 750w 750w
N.W/G.W 170/200kgs 185/215kgs

Standard Accessories:

1) Digital depth ruler

2) Draw bar

3) Drill chuck and arbor

4) Oil gun

5) Toolbox with tools
