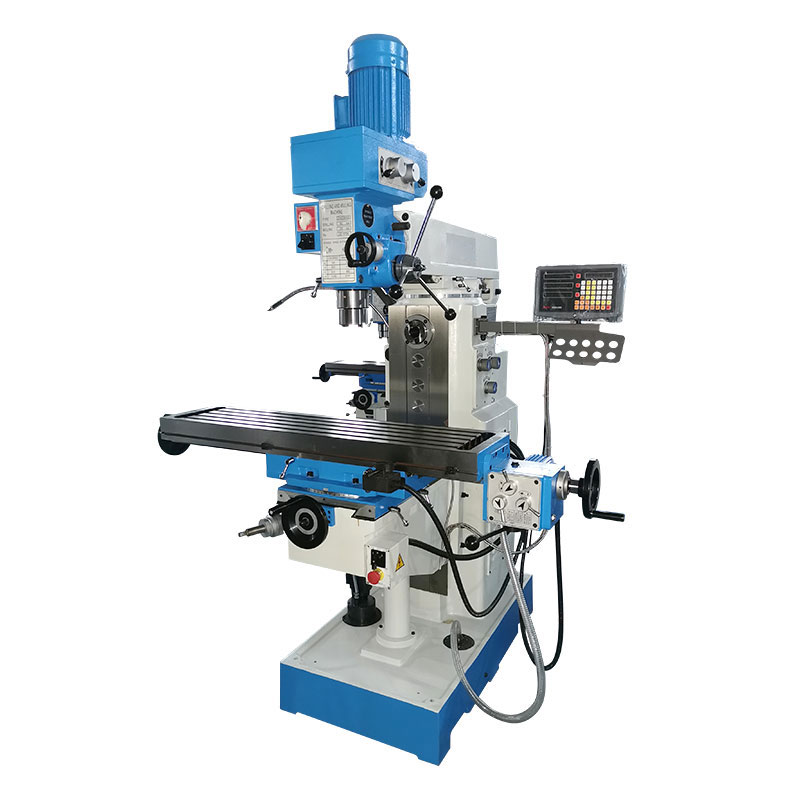

Model | Unit | ZX6350ZA |
Spindle taper |
| MT4/ISO40 |
Distance vertical spindle to table | mm | 100-500 |
Distance horizontal spindle to table | mm | 0~400 |
Distance spindle to column | mm | 240~710 |
Spindle seeds range | r/min | (8 steps)90-2000(vertical) |
(12 steps)40-1300(horizontal) |
Automatic Feed Series sleeve | mm | 120(vertical) |
Table size | mm | 1370×320 |
Table travel | mm | 800/320/400 |
Distance horizontal spindle to arm | mm | 175 |
Table feeds range(x/y) | mm/min | 40-605(8 steps)(max.810) |
T of table (no./width/distance) | mm | 3/14/70 |
Main motor | kw | 2.2 |
Motor of table power feed | w | 1000 |
Coolant pump motor | w | 40 |
N.W/G.W. | kg | 1550/1700 |
Overall dimension | mm | 1700×1480×2150 |
