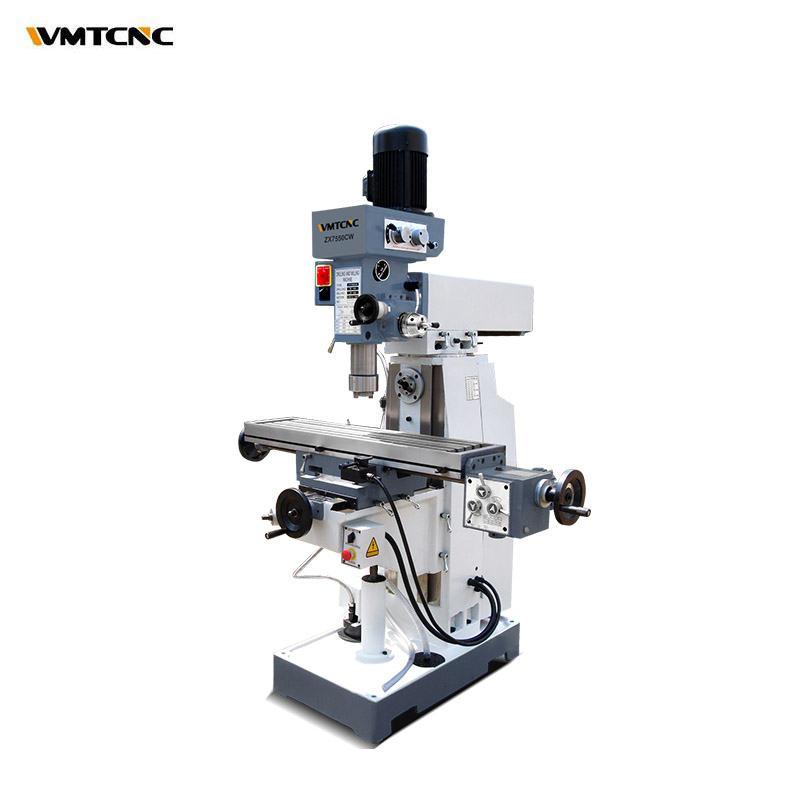

ZX7550CW
WMTCNC
84592900
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Rectanger guide way,better stbility .
2. Easily changing from vertical milling to horizontal milling.
3. Worktable can be automatically feed in X axis ,and equipped with "quick-reverse"unit to realize high efficiency in working.
4. Headstocck swivels ±90º .
5. ZX7550CW vertical milling is gear-driven; Horizontal milling is belt-driven.
6. ZX7550ZW vertical milling spindle can be auto feeding based on ZX7550CW.
| Specification | ZX7550CW |
| Max.drilling dia. | Φ50mm |
| Max.horizontal milling dia. | Φ100mm |
| Max.vertical milling dia. | Φ25mm |
| Max.boring dia. | Φ120mm |
| Spindle taper | MT4.ISO40 |
| Spindle speed | V:115-1750rpm(8) |
| H:60-1350rpm(8) | |
| Spindle travel | 120mm |
| Table size | 240×800(1000)mm |
| Table travel | 400(600)×230×350mm |
| Main motor power (V/H) | V: 0.85/1.5kw H:1.5kw |
| Packing size | 1140x1220x2250(1) |
| 1140x1300x2250(2) | |
| N.w/G.w | 850kg/1000kg |
